Servo brake 203x60

Servo brake 203x60

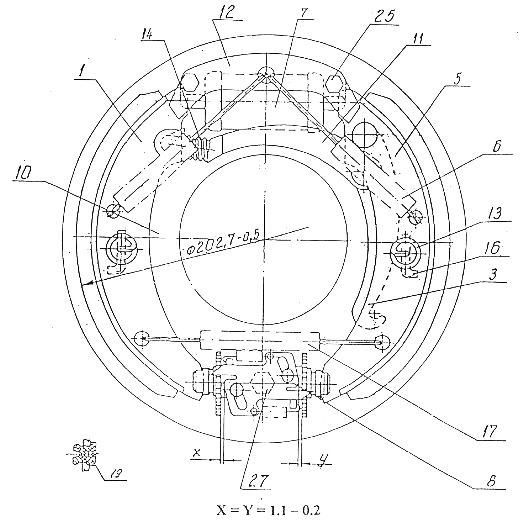

Balkankar Ruen JSC manufactures servo brakes size ф203X60. They are installed in vehicles with a maximum of V = 40 km / h and an equivalent number of stops in both directions of rotation. At customer's request, the elements of this model servo brakes can be also made as spare parts for all forklift trucks of "Balkankar". Linings servo brakes ф203X60. are not made of asbestos material.

Guaranteed braking power at wheel brake cylinder pressure                                                2500 Nm; 250 kg.m

8 MPa (80 kgf/cm2 )

Rated pressure in wheel brake cylinder                                                                                 8 MPa; 80 kgf/cm2

Guaranteed braking power when mechanical lever is actuated by force

P=1000N(100 kgf):

  • At brake drum turning clockwise Mc'                                                                          1600 Nm; 160 kg.m
  • At brake drum turning Mc"                                                                                          2500 Nm; 250 kg.m

Working area of braking shoes                                                                                               108 cm2

Options available:

  • With hand brake
  • Without hand brake
